90TEF.OH
Quarry performance built for profit
DAC 90TEF.OH is an off-highway electric dump truck developed for aggregate operations and industrial quarry applications. The vehicle is optimized for repetitive transport cycles, where electrification delivers significant reductions in energy cost and improvements in operational efficiency.
90 t
Weight
60 t
Payload
350,1 kWh
Battery
6x4
Drivetrain
DAC 90TEF.OH is the DAC electric special vehicle for the off-highway industrial segment. The model is dedicated to operators in quarries, gravel pits, and aggregate sites, where the vehicle operates repetitively, over controlled distances, and under heavy load.
Main application
Material transport in quarries and industrial operations.
Target applications
Operational advantage
90TEF.OH combines high payload capacity with electric propulsion and the performance needed for difficult terrain and repetitive work. It's a solution for industrial productivity, not just a technological alternative.
Economic advantage
In quarry applications, electrification can drastically cut energy cost. The energy cost of an electric truck can be roughly four times lower than that of a diesel truck used in similar applications. This makes 90TEF.OH a vehicle with direct economic relevance for operators tracking cost per tonne transported.
Technical description
DAC 90TEF.OH is a 6x4 off-highway electric dump truck with 90 t gross weight, 60 t payload, and 34 t curb weight. It is equipped with a 350.1 kWh LFP battery, 579.6 V nominal voltage, and two permanent-magnet synchronous motors, each rated 225 kW continuous and 300 kW peak.
Key specifications
6x4 drivetrain | ✓ |
Gross weight | 90 t |
Payload | 60 t |
Curb weight | 34 t |
LFP battery | 350.1 kWh |
Battery nominal voltage | 579.6 V |
Motors | 2 × 225 kW continuous, 2 × 300 kW peak |
Torque | 2 × 460 Nm continuous, 2 × 700 Nm peak |
Top speed | 40 km/h |
Max grade | minimum 30% |
AMT gearbox | ✓ |
IP68 protection | ✓ |
Minimum ground clearance | 315 mm |
Minimum turning radius | 11.5 m |
Benefits for operators
- Major reduction of energy costs in repetitive applications
- High payload capacity
- Instant torque for heavy loads
- Efficient operation in quarries
- Clear positioning on productivity and operating cost
Typical users
- Quarry operators
- Aggregate operations
- Gravel pits
- Off-highway industrial operators

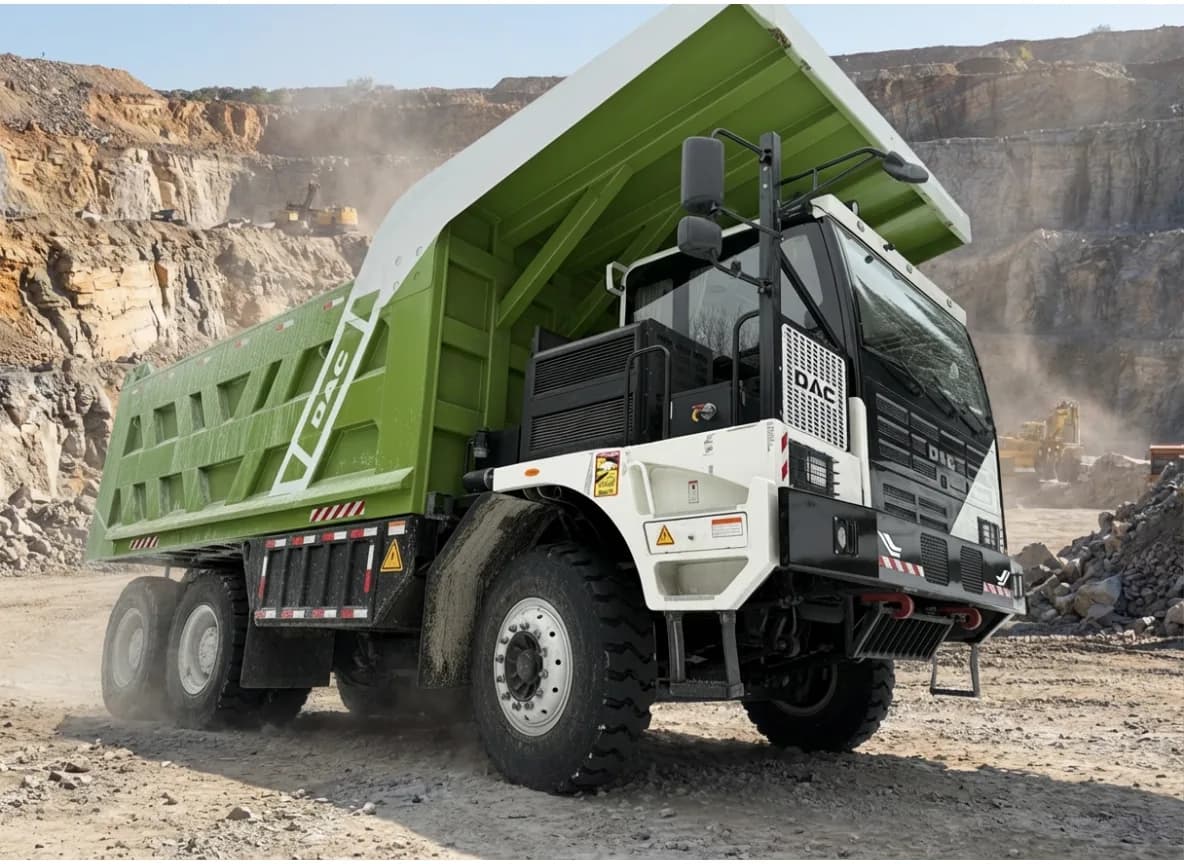

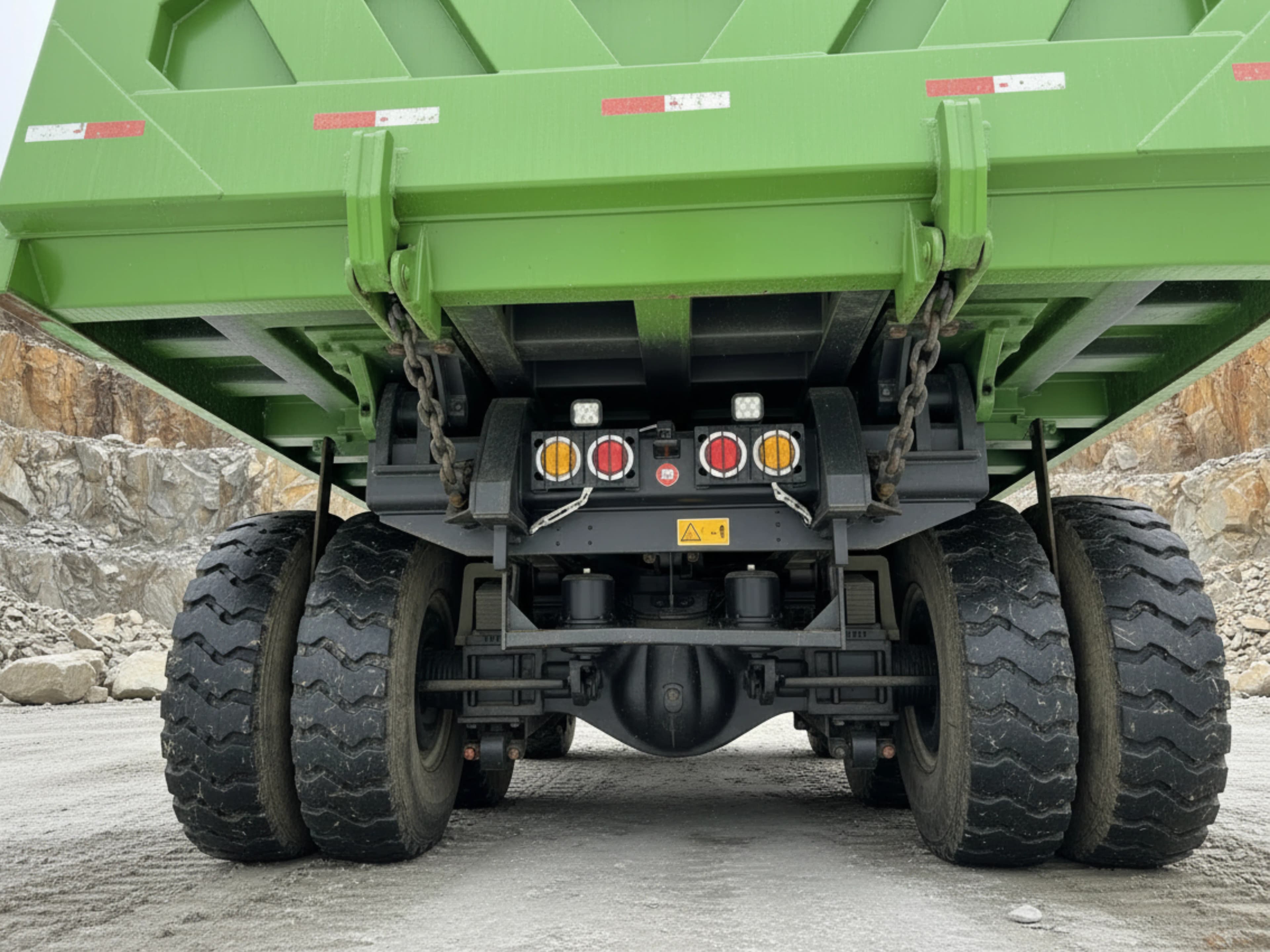

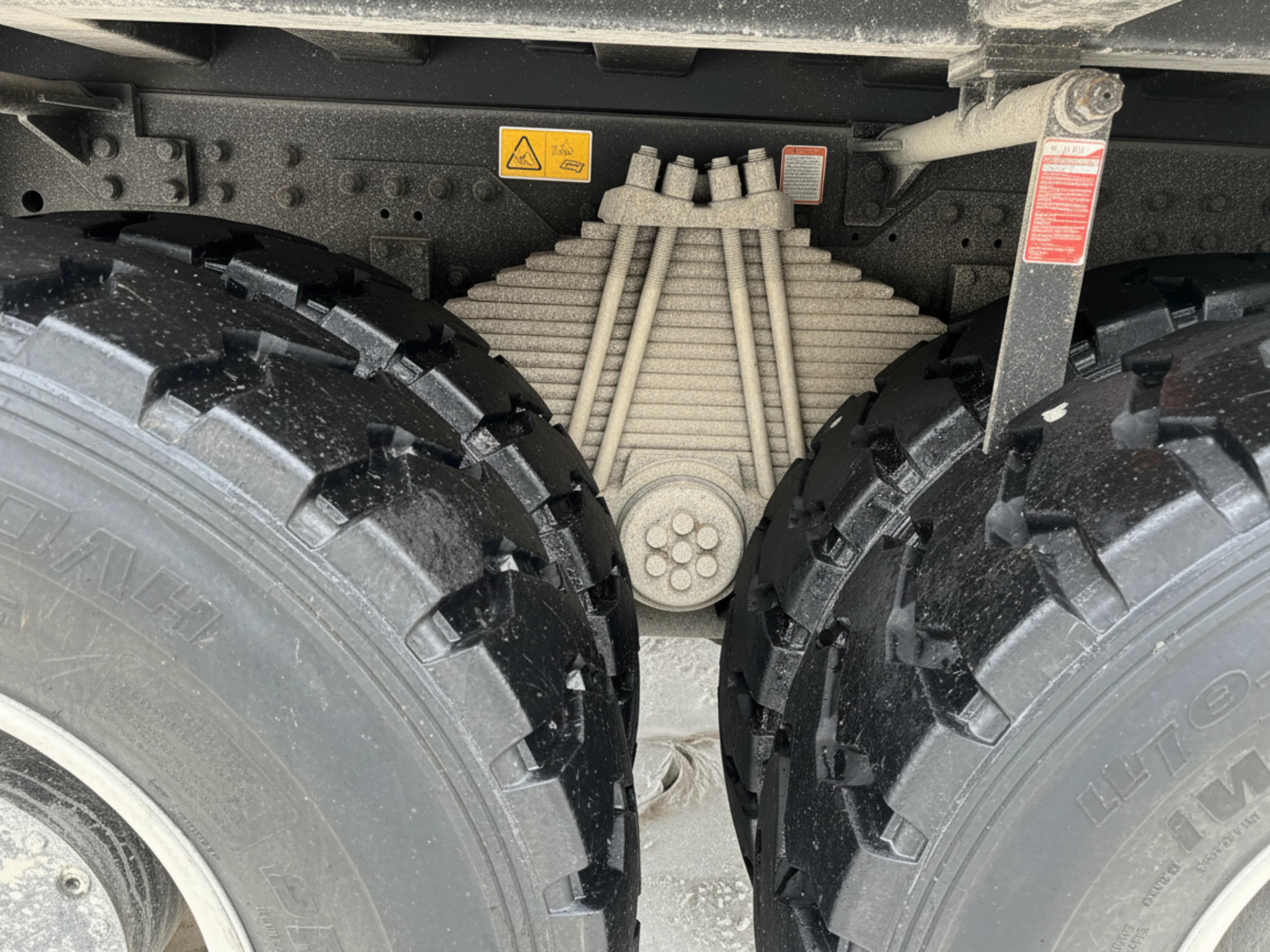

Photo gallery
