XPort 40
Electric terminal traction built for profit
DAC XPort 40 is an electric port tractor developed for intensive operation in terminals, logistics platforms, and dedicated industrial applications. The model is built for repetitive cycles, frequent maneuvers, and high energy efficiency, where electrification can deliver direct economic benefits.
75 t
GVW max
281,92 kWh
Battery
360 kW
Power
80-130 km
Range
XPort 40 is the DAC special vehicle dedicated to handling and traction in port terminals, logistics hubs, and industrial platforms. It's a niche product, with clear utility in operations where availability, charge time, and maneuverability are essential.
Main application
Terminal operation and dedicated logistics traction.
Target applications
Operational advantage
XPort 40 is optimized for applications with short routes, repeated maneuvers, and heavy loads. In such environments, electrification delivers instant response, silent operation, good availability, and easier-to-control energy costs.
Economic advantage
In terminals and logistics platforms, the vehicle operates in clear, predictable cycles. This kind of use favors electrification and unlocks the value of low energy costs, fast charging, and more predictable operation.
Technical description
DAC XPort 40 is a 4x2 electric terminal tractor with a 3,800 mm wheelbase and dimensions of 6,170 × 2,550 × 3,450 mm. Curb weight is 9,500 kg, max GVW is 75 t, with a 42,000 kg standard rating. It is equipped with a 281.92 kWh CATL LFP battery, 80–130 km range, and 1-hour fast charging. Motor type is PMSM, with continuous / max power of 220 / 360 kW and continuous / max torque of 1,500 / 2,100 Nm. Transmission is a 4-speed AMT, ratio 11.98; 0–50 km/h acceleration is 20 seconds; top speed is 40 km/h; maximum climbable grade is 20%. Front / rear turning radius is 1,800 / 1,600 mm.
Key specifications
Electric terminal tractor | ✓ |
4x2 drivetrain | ✓ |
Wheelbase | 3,800 mm |
Dimensions | 6,170 × 2,550 × 3,450 mm |
Curb weight | 9,500 kg |
Max GVW | 75 t |
CATL LFP battery | 281.92 kWh |
Range | 80–130 km |
Fast charging | 1 hour |
PMSM motor | ✓ |
Continuous / max power | 220 / 360 kW |
Continuous / max torque | 1,500 / 2,100 Nm |
4-speed AMT gearbox, ratio 11.98 | ✓ |
0–50 km/h acceleration | 20 seconds |
Top speed | 40 km/h |
Max grade | 20% |
Front / rear turning radius | 1,800 / 1,600 mm |
42,000 kg standard | ✓ |
Benefits for operators
- Low energy cost in repetitive operation
- Fast charging
- Good maneuverability in terminals
- Dedicated product for specific logistics applications
- Predictable operation in controlled environments
Typical users
- Port operators
- Logistics terminals
- Intermodal hubs
- Industrial operators with in-house traction flow

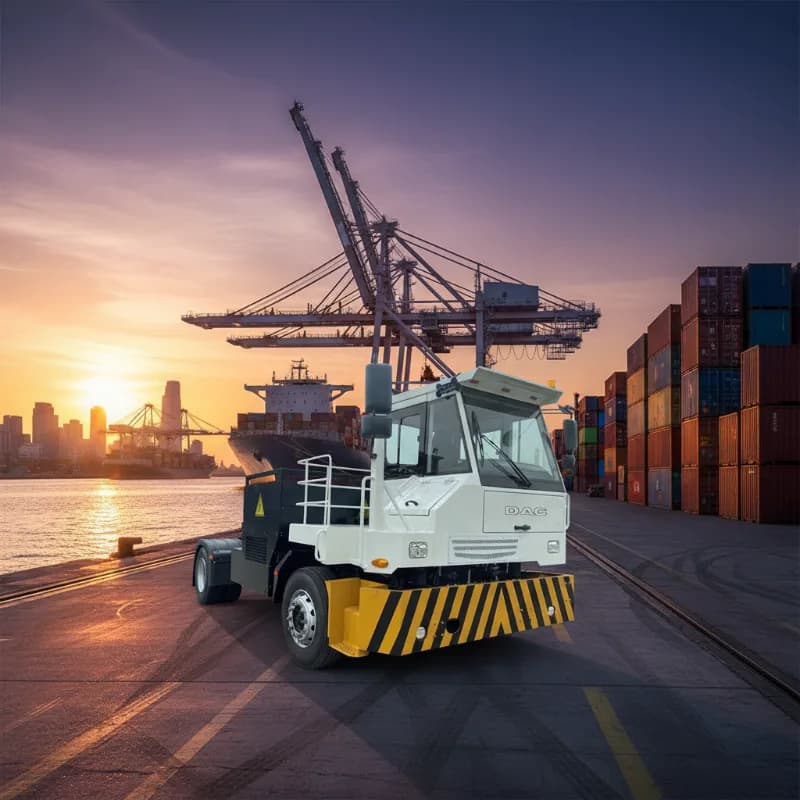

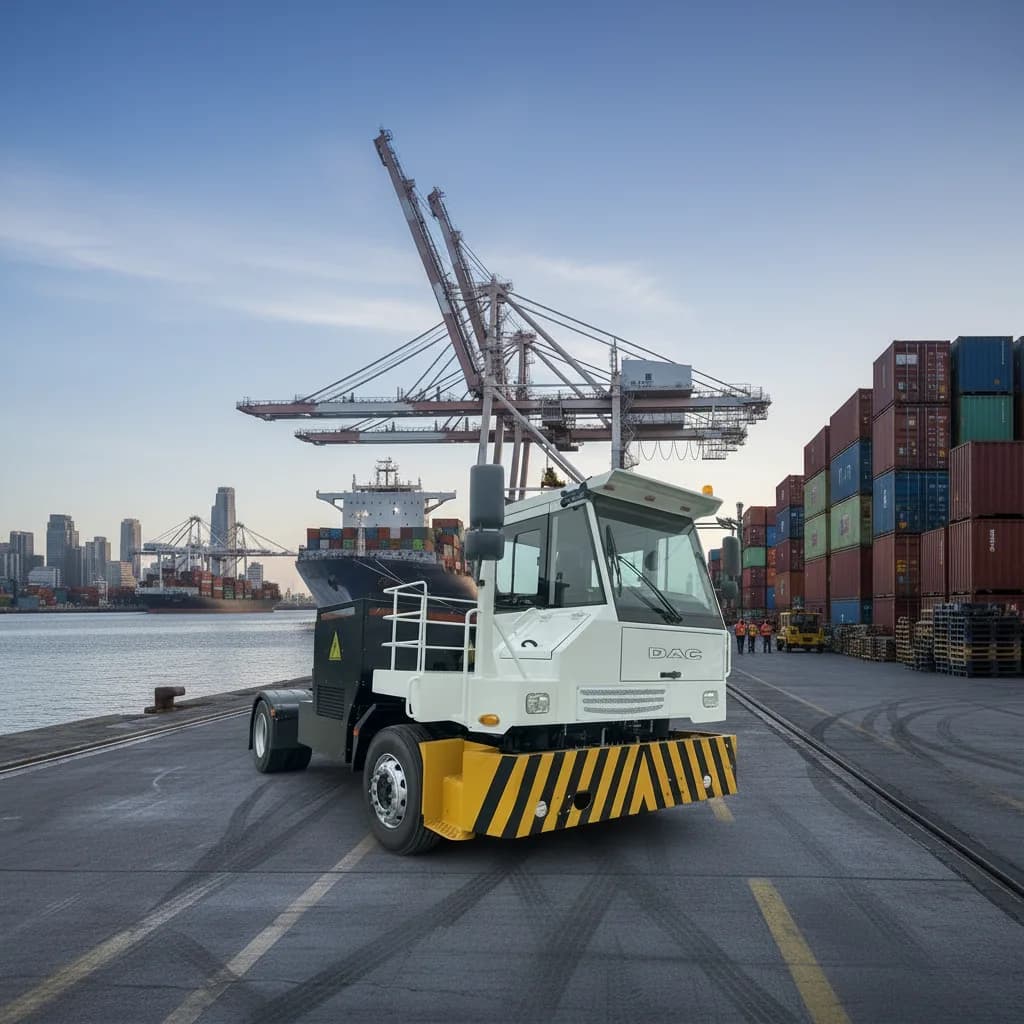

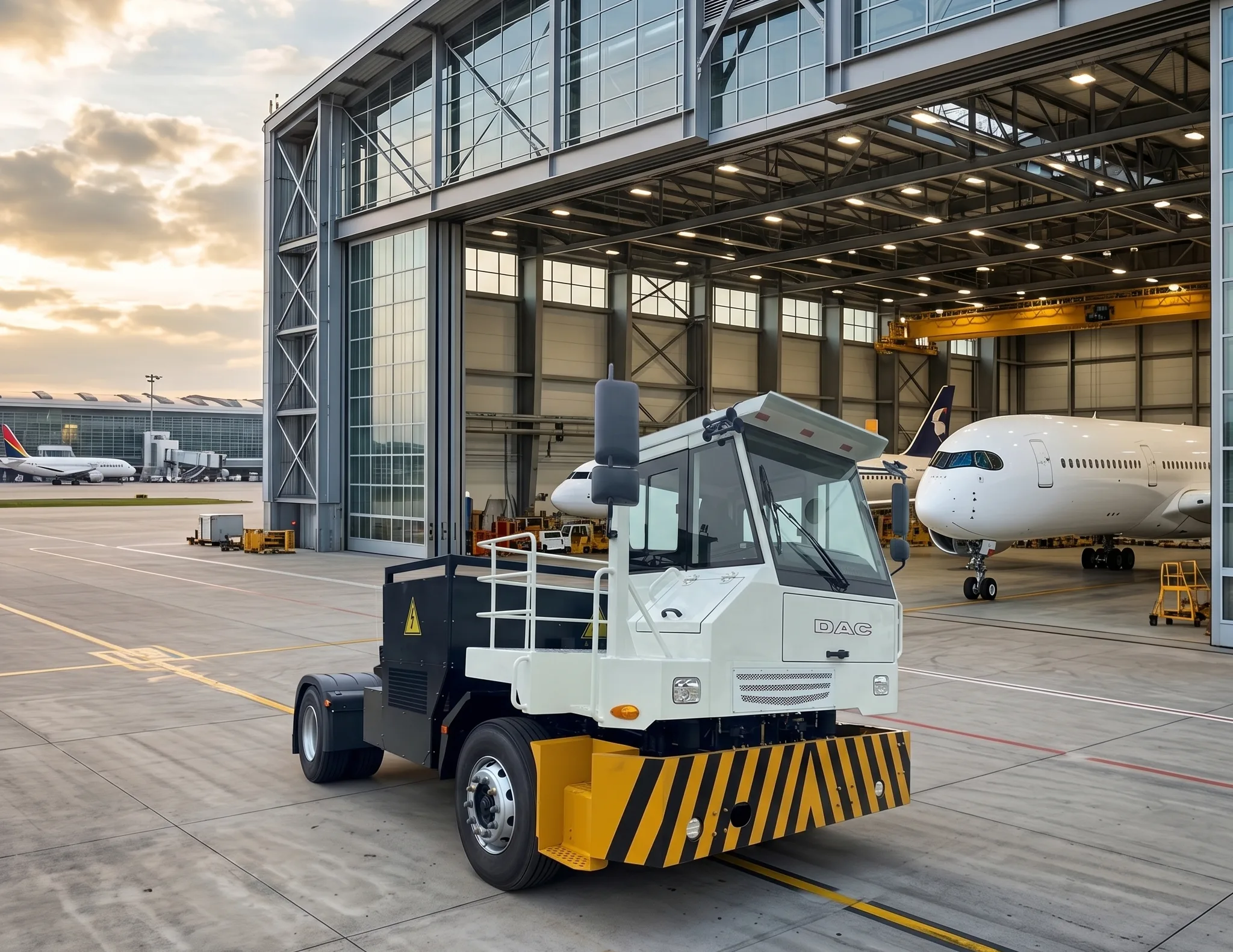

Photo gallery
