E6
Compact urban electric bus
DAC E6 is a compact electric bus dedicated to urban transport in areas with limited infrastructure, short routes, or moderate passenger flows. The model focuses on maneuverability, accessibility, and efficiency in urban operation.
5,99 m
Length
22 passengers
Capacity
298 km
Range
100 kW
Power
E6 is DAC's model for compact urban mobility, suited to small towns, neighborhoods, complementary routes, or areas where compact vehicle dimensions are an operational advantage.
Main application
Compact urban public transport and routes with limited infrastructure.
Target applications
Operational advantage
E6 excels in dense urban areas where standard-size buses can't operate efficiently. Excellent maneuverability and compact dimensions make it ideal for routes with tight turns and narrow streets.
Economic advantage
E6 is a compact model that delivers low operating costs and efficient energy use in the urban-route segment with moderate capacity.
Technical description
DAC E6 is an M3 Class I electric bus, 5,990 mm long, 2,100 mm wide, 2,890 mm tall, with a 4,220 mm wheelbase. The model has 115 kWh LFP batteries, an eSORT2 range of 298.80 km, eSORT2 consumption of 36.86 kWh/100 km, and 100 kW / 500 Nm motor output. Top speed is limited to 69 km/h, gross vehicle weight is 7,000 kg, and total capacity is 22 passengers. Charging is 100 kW DC/AC, and the bus features pneumatic suspension and monocoque construction.
Key specifications
Length | 5,990 mm |
Width | 2,100 mm |
Height | 2,890 mm |
Wheelbase | 4,220 mm |
LFP battery | 115 kWh |
eSORT2 range | 298.80 km |
eSORT2 consumption | 36.86 kWh/100 km |
Motor power | 100 kW |
Max torque | 500 Nm |
Top speed | 69 km/h |
Gross vehicle weight | 7,000 kg |
Capacity | 22 passengers |
Pneumatic suspension | ✓ |
Disability ramp | ✓ |
27 kW air conditioning and 12 kW heating | ✓ |
Full LED headlights | ✓ |
ABS, ESP, ASR, EBS | ✓ |
Charging system | 100 kW DC/AC |
Monocoque construction | ✓ |
Benefits for operators
- Excellent maneuverability in dense areas
- Adequate range for daily urban operation
- Compact, efficient platform
- Lower operating costs
- Easy passenger access
Benefits for cities
- A good solution for local routes and busy areas
- Zero local emissions
- Lower noise
- Strong fit for neighborhood public transport
Passenger comfort
- Spacious cabin for the vehicle's size
- Pneumatic suspension
- Easy access with kneeling function
- Disability ramp
- Dedicated stroller / wheelchair space
Economic efficiency
E6 is a compact model that delivers low operating costs and efficient energy use in the urban-route segment with moderate capacity.
Photo gallery
4 photos

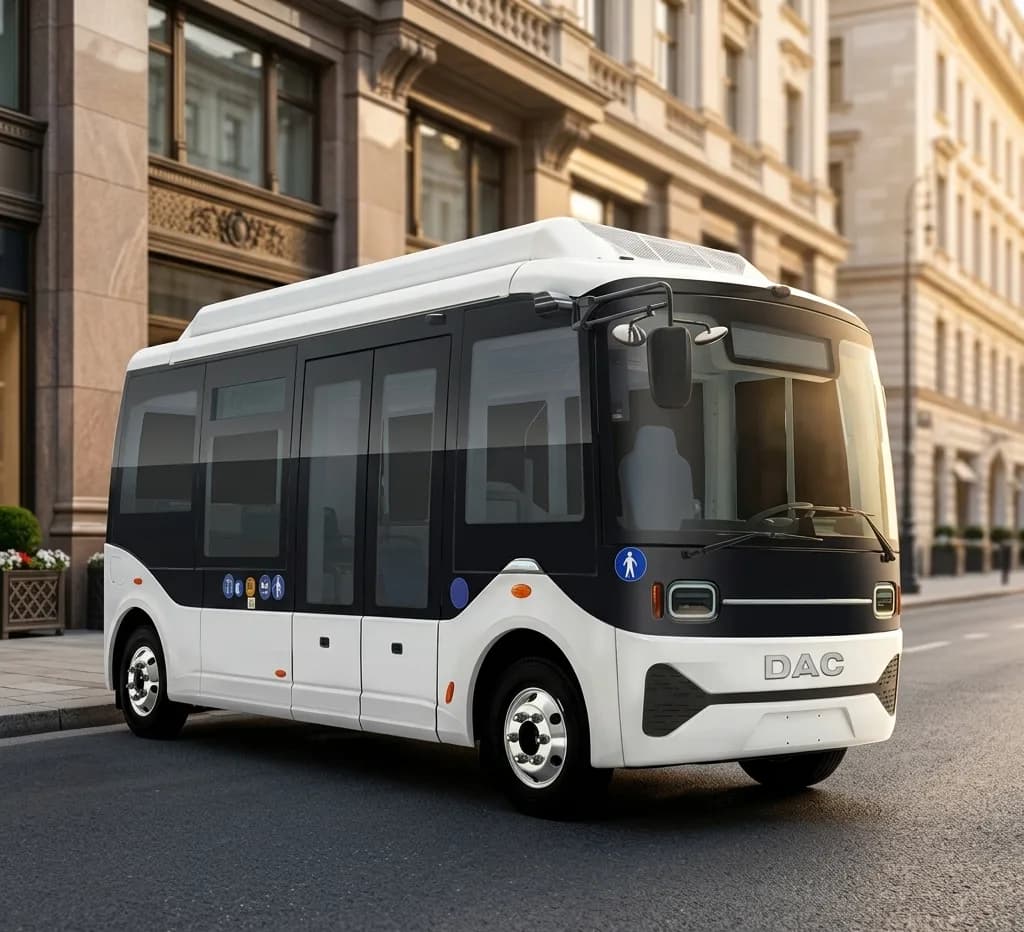

DAC E6
Compact, maneuverable, and efficient electric bus for modern urban mobility.
